6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss

Model Number : ADSS

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : 2KM/Wooden Drum

Supply Ability : 1000000 Meter/Meters per Week

MOQ : 2000 meters

Price : $0.20 - $0.35/meters

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : 6

Product name : ADSS Fiber Optic Cable

Fiber Type : G652D Single mode

Fiber count : 6 core

loose tube : stranded loose tube

Jacket : Single jacket

Outer jacket material : PE

Cental strength member : FRP Strength Member

Non-metallic strength member : Aramid yarn

Cable weight : 70kg/km

Installation : Aerial

Contact Now

Outdoor overhead aerial dielectric 6 core single mode adss fiber optic cable price

Description

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss
6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss

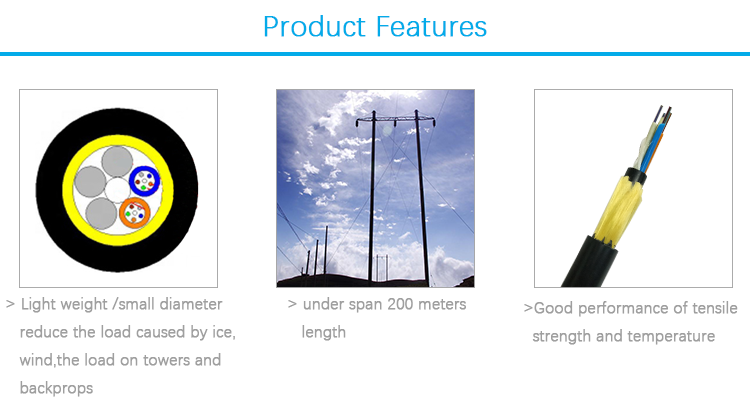

Feature

* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years

6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss
Technical Data
No. of cable
6
Design
(StrengthMember+Tube&Filler)
1+5
Fiber type
G.652D
Central Strength Member
Material
FRP
Diameter
(±0.05mm)
1.5
Loose Tube
Material
PBT
Diameter
(±0.05mm)
2.1
Thickness
(±0.03mm)
0.35
MAX.NO./per
6
Filler Rope
Material
PE
Diameter
(±0.05mm)
1.8
NO.
4
Water Blocking Layer
Material
Flooding Compound
Additional Strength Member
Material
Aramid Yarn
Outer Sheath
Material
MDPE
Thickness
1.8(nominal)
Color
black.
Cable Diameter(±0.2mm)
9.6
Cable Weight(±10.0kg/km)
78
Cable breaking strength(RTS)
5.8Kn
Working Tension (MAT)
2.2Kn
Crush Resistance
Short Term

2200
Long Term
1100
Min. bending radius
Without Tension
10.0×Cable -φ
Under Maximum Tension
20.0×Cable -φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Application
6 Core Single Mode Fiber Optic Cable Outdoor Overhead Aerial Dielectric Adss
